i6AN Series DC/DC Power Module
TDK-Lambda offers its 75 W, 9 V to 40 V input, non-isolated DC/DC converter with negative output

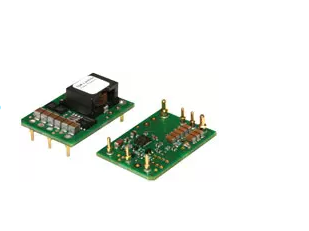

Image of TDK-Lambda's i6AN Series DC/DC Power ModuleTDK-Lambda's i6A24 power modules perform local voltage conversion from either a 12 V or 24 V bus. The i6A24008A033V utilizes a low component count that results in both a low cost structure and a high level of performance. The open-frame, compact, design features a low profile and weight that allow for extremely flexible and robust manufacturing processes. The high efficiency allows for the full output power to be available even in demanding thermal environments.
Features
Size: 33 mm x 22.9 mm x 12.7 mm (1.3" x 0.9" x 0.5")
Maximum weight 15 g (0.53 oz.)
Through-hole pins 3.68 mm (0.145")
Industry standard 1/16th brick form factor
Up to 75 W of output power in high ambient temperature, low airflow environments with minimal power derating
Polarity inversion
Wide output voltage adjustment range (-3.3 V to -30 V)
Negative logic on/off
Low noise
Constant switching frequency
Remote sense
Full, auto-recovery protection:
Input under voltage
Short circuit
Thermal limit
ISO-certified manufacturing facilities
Optional Features
Positive logic on/off
Short 2.79 mm (0.110") pin length
Long 4.57 mm (0.180") pin length
